Standard Wet System

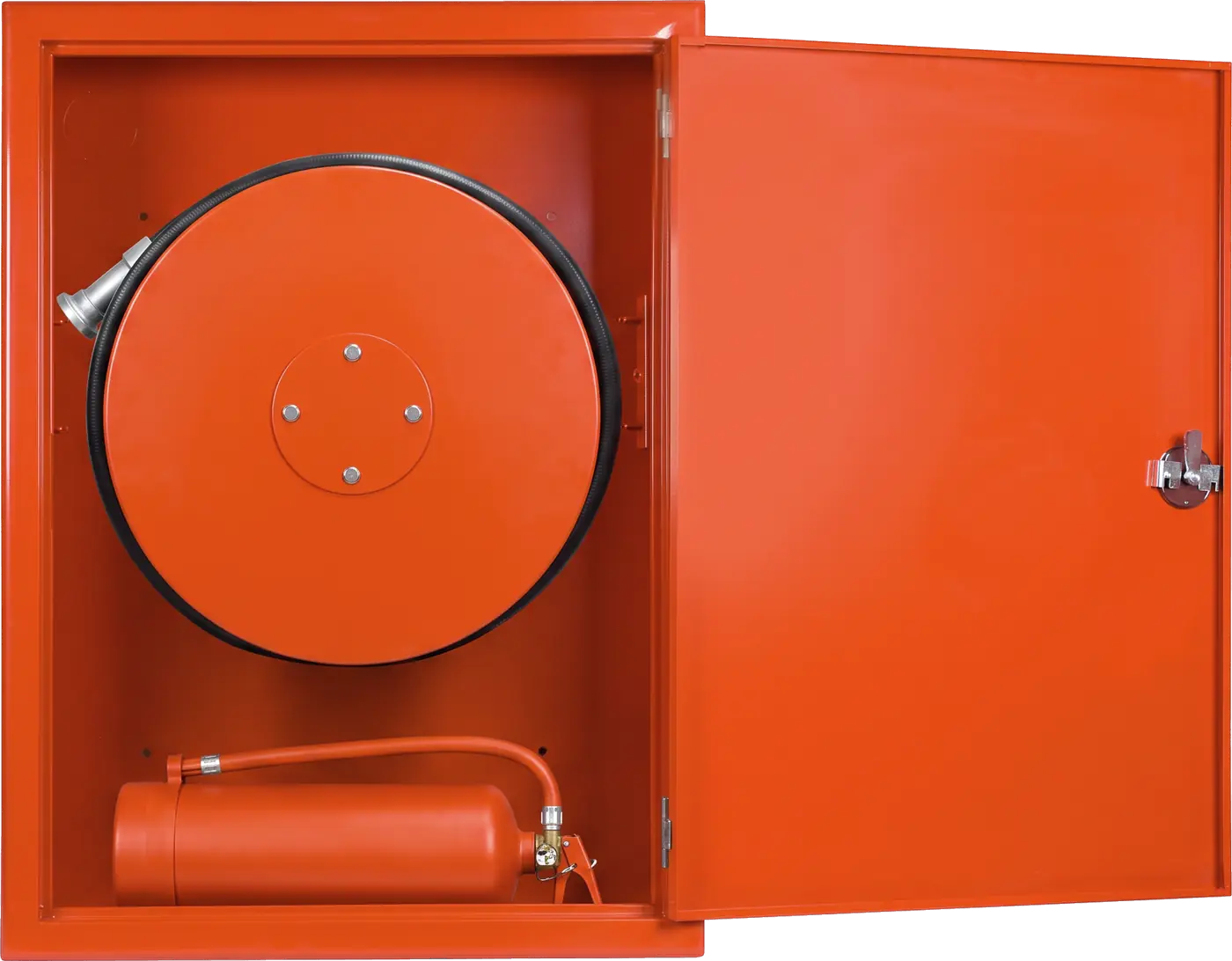

Standard Wet — Extinguisher Compartment, Steel Door
Standard-series wet-system fire cabinet with an extinguisher compartment and a steel door. A 1000×750×200 mm steel body holds a TS EN 694 certified 20-30 m hose, a three-position fog nozzle and a tempered-glass extinguisher compartment.
Features
- Cabinet body measures 1000×750×200 mm.
- Cabinet body is manufactured from 1.2 mm sheet steel.
- Finished in red electrostatic powder coating.
- Cabinet hinges are chrome-plated.
- The hose inside is TS EN 694 certified, available in 20 m, 25 m and 30 m options.
- Fitted with a 1″ three-position fog nozzle.
- The reel is made of 1.2 mm sheet steel.
- The reel mounting bracket is double-sided.
- Door latches are recessed chrome-plated plastic, opened with three fingers.
- A centered spot-welded 8 cm hole is positioned at each of the four corners.
- The door carries a “TS EN 671-1” label.
- The 80 cm connection hose is reinforced with an internal 80 cm steel spring to prevent kinking.
- Four 8 mm mounting holes are provided on the back of the body.
- The extinguisher-compartment pane is 52×10 cm, 4 mm tempered glass.
Technical table
| Product Code | Compartments | Type | Door | 1″ Hose | Valve Type | Dimensions |
|---|---|---|---|---|---|---|
| 1-02-01-03-03-0001-U | With Extinguisher Compartment | Surface-Mounted | Steel Door | 20 m | 1″ Ball | 1000×750×200 mm |
| 1-02-01-03-03-0013-U | With Extinguisher Compartment | Recessed | Steel Door | 20 m | 1″ Ball | 1000×750×200 mm |
| 1-02-01-03-03-0002-U | With Extinguisher Compartment | Surface-Mounted | Steel Door | 25 m | 1″ Ball | 1000×750×200 mm |
| 1-02-01-03-03-0014-U | With Extinguisher Compartment | Recessed | Steel Door | 25 m | 1″ Ball | 1000×750×200 mm |
| 1-02-01-03-03-0003-U | With Extinguisher Compartment | Surface-Mounted | Steel Door | 30 m | 1″ Ball | 1000×750×200 mm |
| 1-02-01-03-03-00015-U | With Extinguisher Compartment | Recessed | Steel Door | 30 m | 1″ Ball | 1000×750×200 mm |
