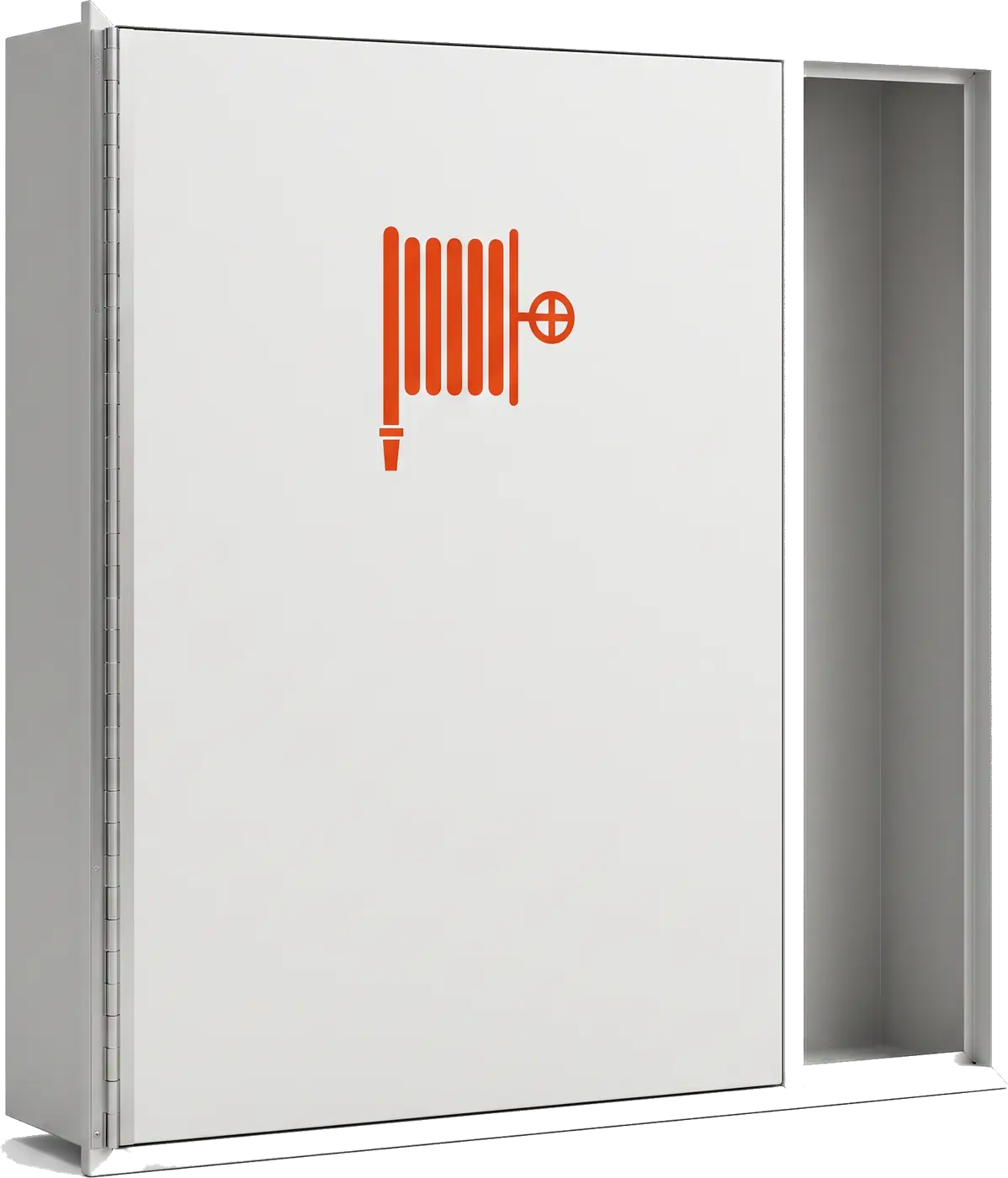

Premium — Extinguisher Compartment, Steel (Side)

Premium-series fire cabinet with a side-positioned extinguisher compartment and a steel door. 1000×750×200 mm, galvanized steel body; 12 variants across surface-mounted/recessed, 20-30 m hose and 1″ ball / 2″ valve options.

Premium — Extinguisher Compartment, Steel (Side)

Features

  • Cabinet body measures 1000×750×200 mm.
  • Cabinet body is manufactured from 1.2 mm GALVANIZED sheet steel.
  • The door is black or white tempered glass.
  • RAL 9005 Black & RAL 9016 White electrostatic powder coating.
  • Cabinet hinges are 0.8 mm continuous hinges.
  • The hose inside is TS EN 694 certified, available in 20 m, 25 m and 30 m options.
  • Fitted with a 1″ three-position fog nozzle.
  • Fitted with a TS 12259 certified 2″ (85 mm) fire valve and a TS 12258 certified 2-1″ aluminum injection tailed coupling.
  • The reel is made of 1.2 mm galvanized sheet steel with strength-enhancing patterned press forming.
  • The reel mounting bracket is double-sided.
  • Door latches are recessed plastic, opened with three fingers.
  • Door latches are magnetic from the inside.
  • The reel hub is plastic injection molded; zamak-cast parts are brass-plated.
  • The 80 cm connection hose is reinforced with an internal 80 cm steel spring.
  • Four 8 mm mounting holes are provided on the back of the body.

Technical table

Product CodeCompartmentsTypeDoor1″ HoseValve TypeDimensions
1-10-10-000037With Extinguisher CompartmentSurface-MountedSteel Door20 m1″ Ball1000×750×200 mm
1-10-10-000038With Extinguisher CompartmentRecessedSteel Door20 m1″ Ball1000×750×200 mm
1-10-10-000039With Extinguisher CompartmentSurface-MountedSteel Door25 m1″ Ball1000×750×200 mm
1-10-10-000040With Extinguisher CompartmentRecessedSteel Door25 m1″ Ball1000×750×200 mm
1-10-10-000041With Extinguisher CompartmentSurface-MountedSteel Door30 m1″ Ball1000×750×200 mm
1-10-10-000042With Extinguisher CompartmentRecessedSteel Door30 m1″ Ball1000×750×200 mm
1-10-10-000043With Extinguisher CompartmentSurface-MountedSteel Door20 m2″ Valve1000×750×200 mm
1-10-10-000044With Extinguisher CompartmentRecessedSteel Door20 m2″ Valve1000×750×200 mm
1-10-10-000045With Extinguisher CompartmentSurface-MountedSteel Door25 m2″ Valve1000×750×200 mm
1-10-10-000046With Extinguisher CompartmentRecessedSteel Door25 m2″ Valve1000×750×200 mm
1-10-10-000047With Extinguisher CompartmentSurface-MountedSteel Door30 m2″ Valve1000×750×200 mm
1-10-10-000048With Extinguisher CompartmentRecessedSteel Door30 m2″ Valve1000×750×200 mm

Details and pricing

Contact us for quantities, delivery, and bulk-purchase terms.
